CNC Fiber Laser Cutting For Metal Cutting Steel Iron Copper Aluminum

Product introduction

The series of optical fiber laser cutting machine adopts the international advanced technology optical fiber laser, equipped with high-precision gear rack, high-precision linear guide rail and other high-efficiency transmission mechanism, the advanced numerical control system and special laser cutting software. Precision CNC fiber laser cutting machine is a set of laser cutting, precision machinery, CNC technology and other disciplines in one of the high-tech products, mainly used for carbon steel, stainless steel, aluminum alloy and other metal material cutting and forming, with high speed, high precision, high efficiency, high cost-effective characteristics, and is the preferred cutting machine in metal processing industry.

Performance

1. Excellent beam quality: small gathering spot, higher working efficiency and better processing quality；
2. Extremely high cutting speed: twice as powerful as a CO₂ laser cutter；
3. Extremely stable: using advanced fiber laser, stable performance, service life up to 100,000 hours；
4. Very High electro-optic conversion rate: fiber laser cutting machine than CO₂ laser cutting machine electro-optic conversion rate 3 times higher, energy-saving and environmental protection；
5. Extremely low cost of use: optical fiber transmission, no need for reflective lenses, can save a lot of maintenance costs；
6. Easy maintenance of the product: optical fiber transmission, no need to adjust the light path；
7. Super Flexible Light Guide effect: small size, compact structure, easy to flexible processing；

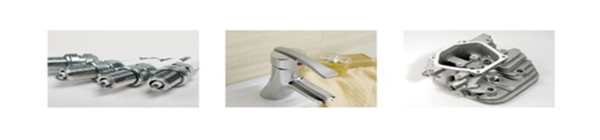

Applicable material
Cutting a variety of metal plate, tube (cut tube plus cutting device can) , mainly for stainless steel, carbon steel, galvanized plate, electrolytic plate, brass plate, aluminum plate, manganese steel, all kinds of alloy plate, rare metal material rapid cutting.

Industry application
Electric Power, automobile manufacturing, mechanical equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, lighting hardware, display equipment, precision parts, hardware products and other

Product type

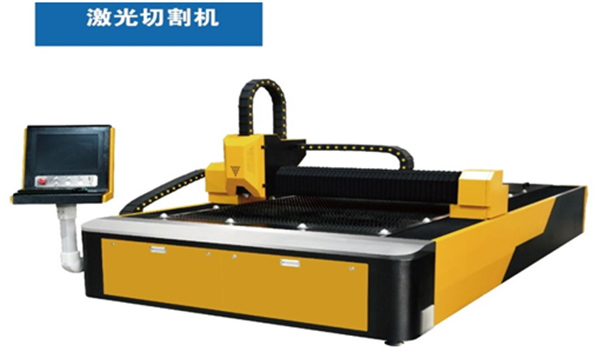

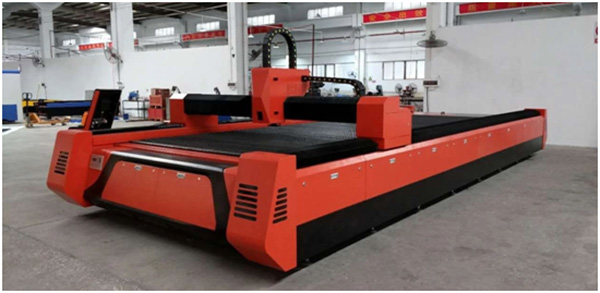

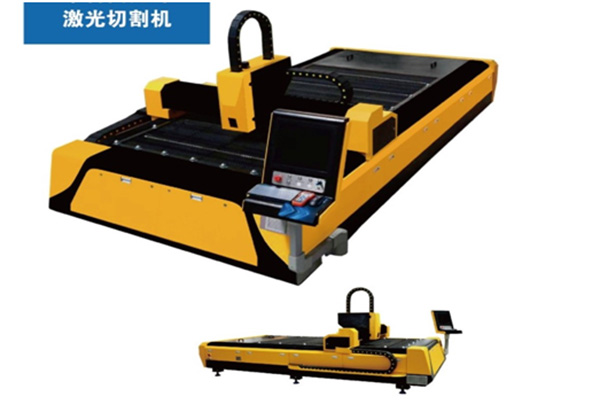

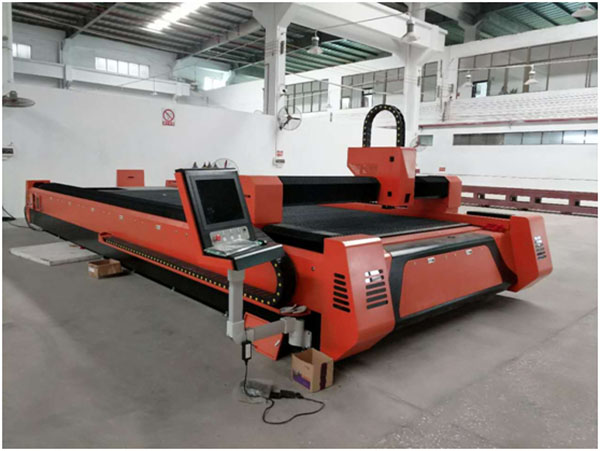

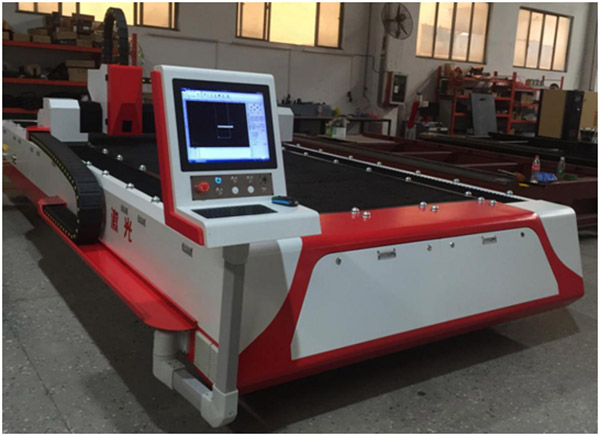

1. Single table fiber laser cutting machine

Product brief:

FLC 3015F / FLC 4015F / FLC 4020F / FLC6020F fiber laser cutting machine is a regular export product of our company, the beautiful appearance, compact structure, small stand space; under two helical gear drive, shaft bevel gear high speed and precision; the device consists of a main machine, cutting table, control cabinet, fiber laser,laser cutting, CNC system, cooler, air compressor system, conditioner and power supply components.

Product features:

1. Independent R&D, manufacturing cutting table, special processing technology, high precision, stable and reliable, long service life;
2. The main body of the steel plate welding, transmission structure, on the axis of aluminum cast beams,light weight, fast response, good dynamic performance;
3. Under the dual drive shaft precision helical structure on shaft bevel gear transmission, stable and reliable motion.
4. The international first-class quality fiber laser, long history of industrial applications, maintenance easily stable and reliable
5. With high response and high precision servo motor;
6. High precision laser cutting head, imported optical lens, focusing on fine, convenient adjustment and perfect cutting;
7. The high response of double loop control high capacitance, low sensitive on the plate, the cutting quality is stable and reliable;
8. The CNC system operation is simple and easy to learn, low requirements for operators;
9. Cutting graphics input formats, powerful graphics rendering and editing function;
10. Special cutting software, cutting technology experts, data storage call function;
11. Proportional valve control gas flow, air flow stability, cutting surface quality;
12. Automatic lubrication system, machine running more smoothly, long life;

Detail parameter:

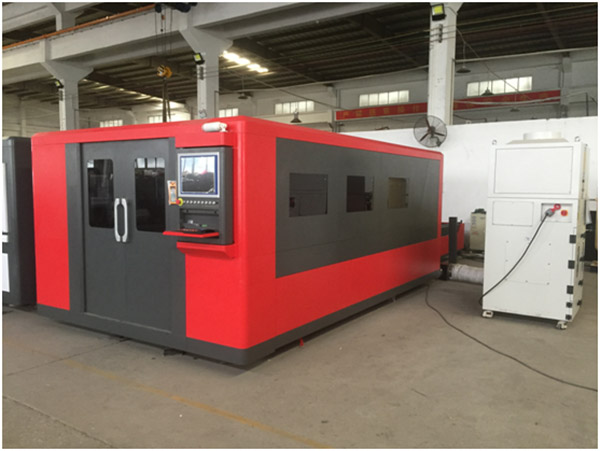

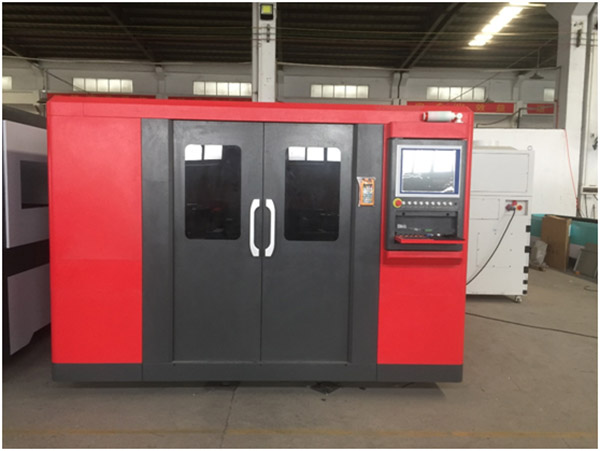

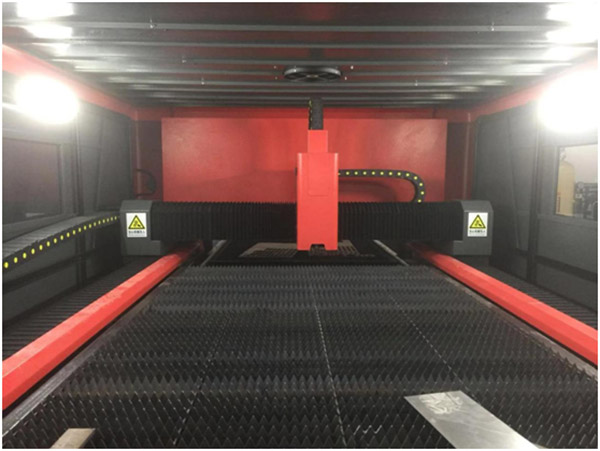

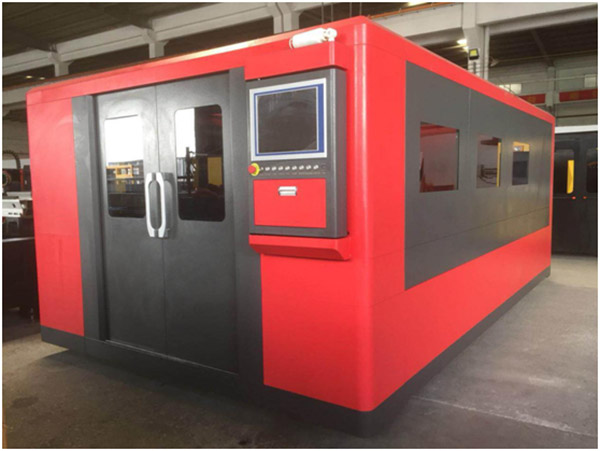

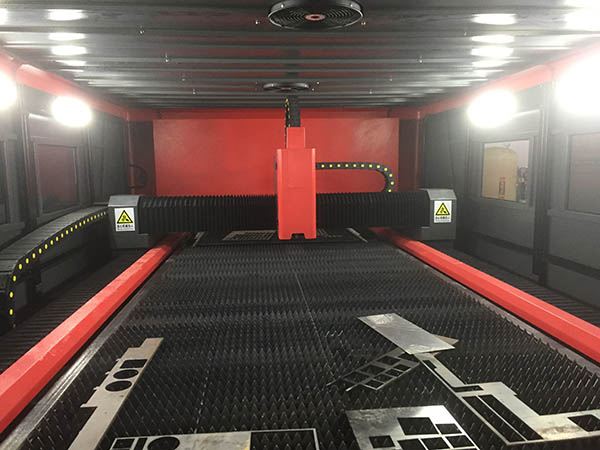

2. Closed cover style and automatic exchange table laser cutting machine

Product Brief:
FLC 3015FB / FLC 4020FB fiber laser cutting machine is a popular product of our company's customers , the beautiful appearance, compact structure, small stand space; under two helical gear drive, shaft bevel gear,high speed and precision; the device consists of a main machine, cutting table, control cabinet, fiber laser,laser cutting, CNC system, cooler, air compressor system, conditioner, power supply,safety light curtain protection device and exhaust system components .

Product Features:
1. Dual drive design, movements stable and reliable;
2. Exchange table, fast exchange speed, easily loading the plate;
3. Machine cover sheet safety design;
4. Independent R & D, manufacturing cutting table, special processing technology, high precision, stable and reliable, long service life;
5. Aluminium molded Gantry, light and respond high speed;
6. Precision gear motor reducer with servo drive motor, high speed respond;
7. Classic quality laser power, long life and free maintenance;
8. Cut head with the imported lens and high energy focus, good cut performance;
9. Double feedback capacitor height controller, cut quality reliable;
10. Closed-loop control system, high speed response;
11. CNC operation easier for the training;
12. Professional nesting software;
13. Professional cut software, database saving and loading;
14. Proportional valve control the gas flow, good quality;
15. Automatic lubrication system, machine running more smoothly, long life;
16. The process of smoke dust experts, like boat exhaust gas system design, the effect is better.

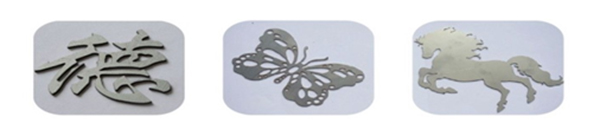

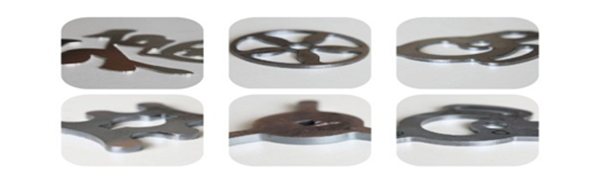

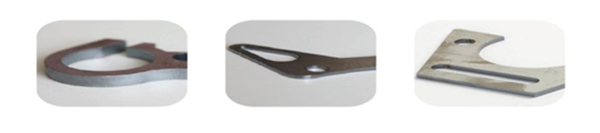

Sample presentation:

Detail parameter:

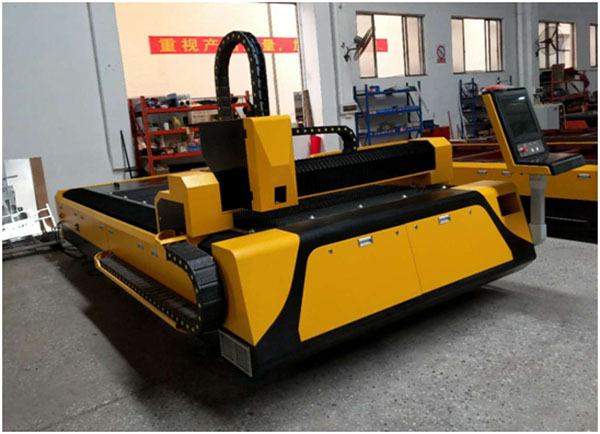

3. Advertising fiber laser cutting machine

Product brief:
FLC 2513F fiber laser cutting machine is a stereotyped product of our company,the beautiful appearance, compact structure, small stand space; under single drive screw transmission, high speed and precision; the device consists of a main machine, cutting table, control cabinet ,fiber laser ,laser cutting, CNC system, cooler, air compressor system, conditioner and power supply components.

Product features:
1.Independent R&D, manufacturing cutting table, special processing technology, high precision, stable and reliable, long service life
2.The main body of the steel plate welding,on the axis of aluminum cast beams,
light weight, fast response, good dynamic performance
3.Under the single drive screw transmission, stable and reliable motion.
4.The international first-class quality fiber laser, long history of industrial applications, maintenance easily stable and reliable
5.With high response and high precision servo motor;
6.High precision laser cutting head, imported optical lens, focusing on fine, convenient adjustment and perfect cutting;
7.The high response of double loop control high capacitance, low sensitive on the plate, the cutting quality is stable and reliable;
8.The CNC system operation is simple and easy to learn, low requirements for operators;
9.Cutting graphics input formats, powerful graphics rendering and editing function;
10.Special cutting software, cutting technology experts, data storage call function;
11.Proportional valve control gas flow, air flow stability, cutting surface quality;
12.Automatic lubrication system, machine running more smoothly, long life;

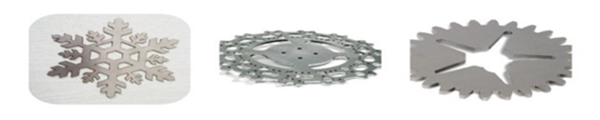

Sample presentation:

Detail parameter:

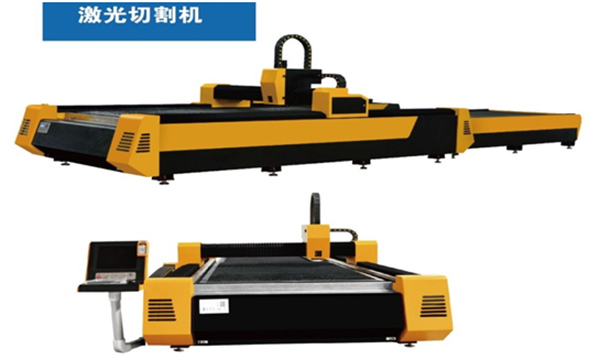

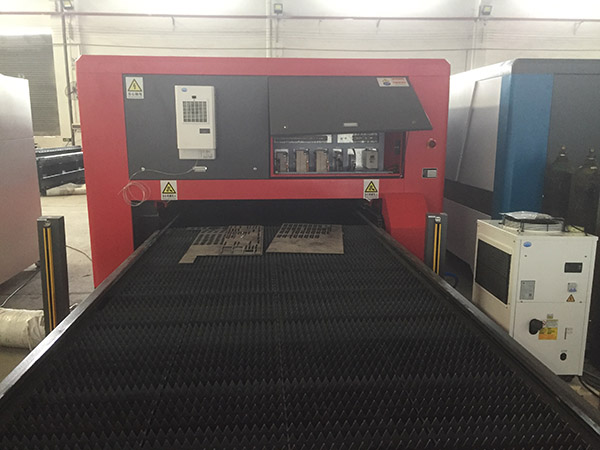

4. Automatic exchange fiber laser cutting machine

Product Brief:
FLC 3015FA/FLC 4020FA fiber laser cutting machine is a popular product of our company's customers, the beautiful appearance,compact structure, small stand space,under two helical gear drive, shaft bevel gear, high speed and precision; the device consists of a main machine, cutting table, control cabinet, fiber laser, laser cutting,CNC system, cooler, air compressor system, conditioner and power supply components.
Product Features:
1. Dual drive design, movements stable and reliable;
2. Exchange table, fast exchange speed, easily loading the plate;
3. Independent R & D, manufacturing cutting table, special processing technology, high precision, stable and reliable, long service life;
4. Aluminium molded Gantry, light and respond high speed;
5. Precision gear motor reducer with servo drive motor, high speed respond;
6. Classic quality laser power, long life and free maintenance;
7. Cut head with the imported lens and high energy focus, good cut performance;
8. Double feedback capacitor height controller, cut quality reliable;
9. Closed-loop control system, high speed response;
10. CNC operation easier for the training;
11. Professional nesting software;
12. Professional cut software, database saving and loading;
13. Proportional valve control the gas flow, good quality;
14. Automatic lubrication system, machine running more smoothly, long life;

Sample presentation:

Detail parameter:

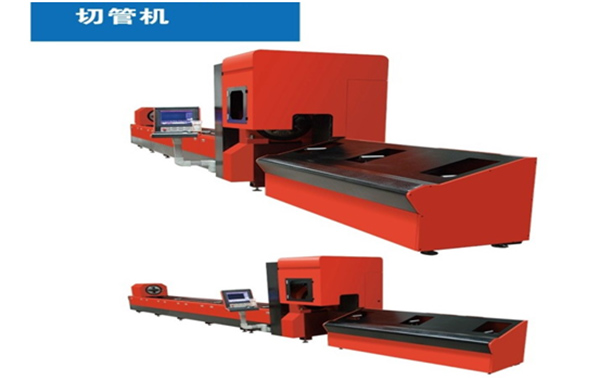

5. Professional laser pipe cutting machine for optical fiber

Product Brief:
FLC 6020G laser cutting machine, suitable for processing all kinds of irregular pipe. three chuck, zero tail design, outer protective structure, high cutting precision, high efficiency, is the preferred equipment for laser cutting tube.

Product Features:
1. Safety protection design;
2. 3 clutch, no waste;
3. Automatic central line;
4. Tube loading supporter,optional pipe automatic loading;
5. Special mechanism for automatic unloading;
6. Automatic focus cut head, high cut performance;
7. CNC operation easier for the Junior;
8. Professional nesting software;
9. Proportional valve control the gas flow, good quality;
10. Automatic lubrication system,machine running more smoothly, long life;

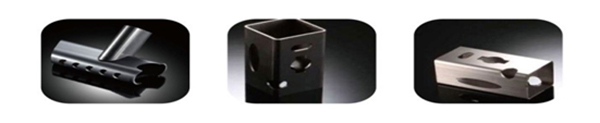

Sample presentation:

Detail parameter:

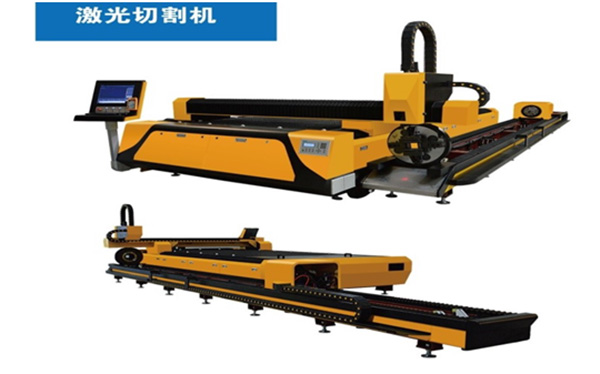

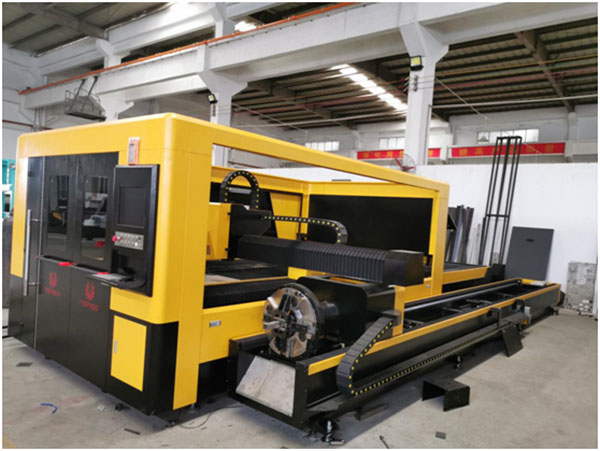

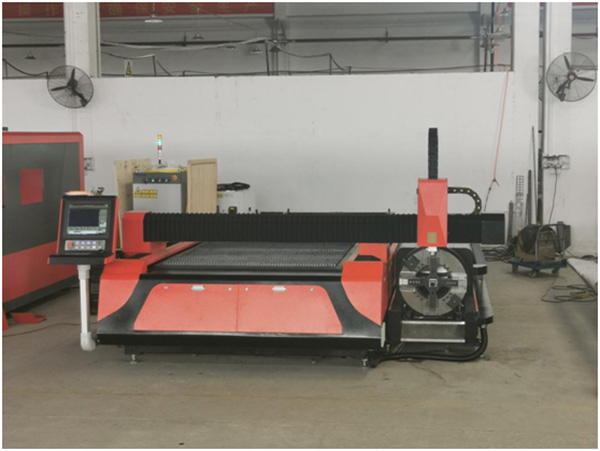

6. Dual-purpose fiber laser cutting machine for tube sheet

Product Brief:
FLC 3015FG series Tube& Plate combined laser machine can cut plate and tube. According to the different cutting application, side-hang,separate mechanic unit, enclosed&separated type can be supplied.

Product Features:
1. Tube& Plate combined compact structure;
2. Dual drive gantry mechanic, reliable;
3. Tube loading with the supporter, easier loading;
4. Dual turning active clutch, high cut performance;
5. Front and rear two self-centering pneumatic chucks, high stability
6. Automatic focus cut head, high efficiency;
7. CNC operation easier for the junior;
8. Professional plate & tube nesting software;
9. Proportional valve control the gas flow, good quality;
10. Automatic lubrication system, machine running more smoothly, long life;

Sample presentation:

Detail parameter:

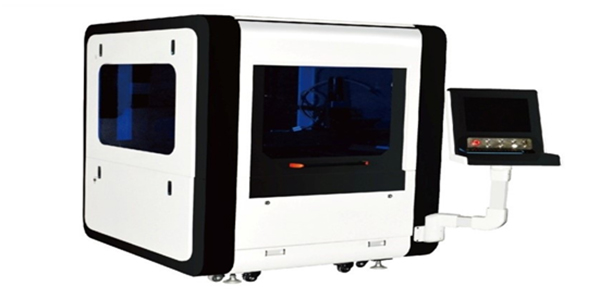

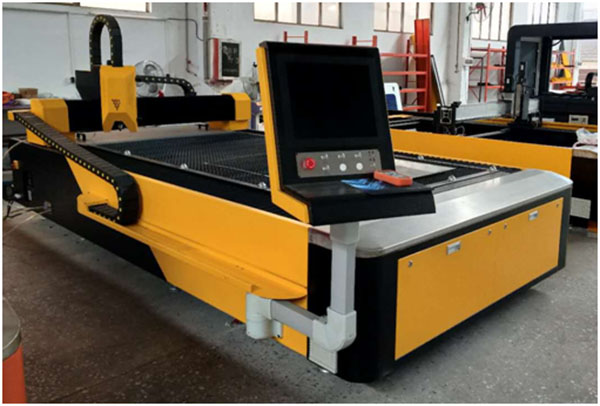

7. Small-format precision fiber laser cutting machine

Product Brief:
FLC 0606FB fiber laser cutting machine is a Small-format precision product of our company,the beautiful appearance, compact structure, small stand space; under precision screw drive,high speed and precision; the device consists of a main machine, cutting table, control cabinet, fiber laser,laser cutting CNC system, cooler, air compressor system, conditioner and power supply components.

Product Features:
1. Gantry Precision screw drive design, stable and reliable action;
2. Machine cover sheet safety design;
3. Independent R & D, manufacturing cutting table, special processing technology, high precision, stable and reliable, long service life;
4. Aluminium molded Gantry, light and respond high speed;
5. Precision screw drive, high speed response;
6. Classic quality laser power, long life and free maintenance;
7. Cut head with the imported lens and high energy focus, good cut performance;
8. Double feedback capacitor height controller, cut quality reliable;
9. Closed-loop control system, high speed response;
10. CNC operation easier for the training;
11. Professional nesting software;
12. Professional cut software, database saving and loading;
13. Proportional valve control the gas flow, good quality;
14. Automatic lubrication system, machine running more smoothly, long life;

Sample presentation:

Detail parameter:

8. Equipment components and accessories

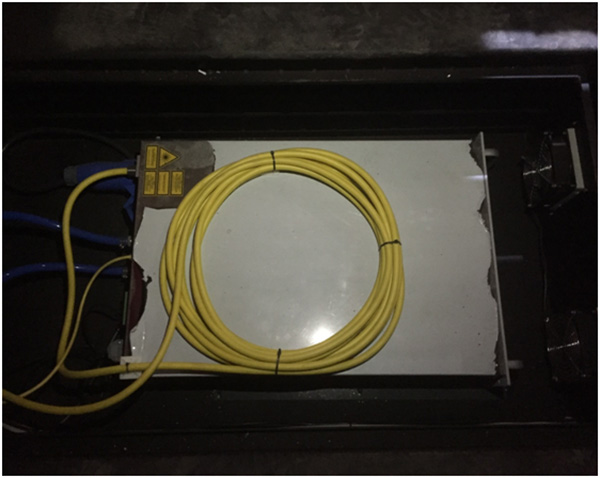

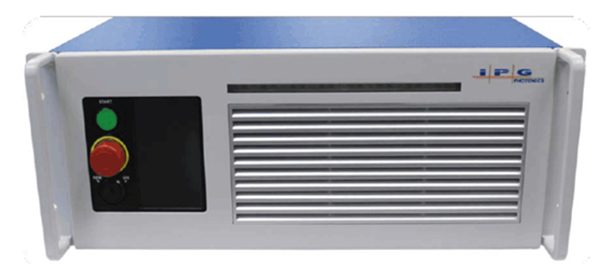

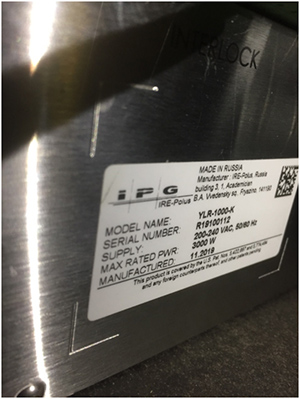

Laser Generator (IPG):

IPG fiber laser is the one of the most widely used, the most reliable in the world. The cutting efficiency and quality acquired by the major of the end users. The optical fiber transmit directly to the cutting head without the loss. The laser resource installed separately, which be easily cooled by the deionized water. The fiber laser power unit is smaller and lighter.

Raytools Laser Cutting Head

The laser cutting head adopts a high-precision fiber laser machine special anti-collision cutting head to ensure high cutting precision and cutting efficiency. The cutting head is equipped with an extremely sensitive non-contact capacitive sensing device, which enables a very stable Z-axis automatic tracking function, which eliminates the influence of the unevenness of the sheet on the cutting quality, thereby improving the yield of the product. The laser cutting machine is equipped with focusing lenses to meet the needs of customers cutting sheets. The lens is replaced by a drawer type, and the whole replacement process is convenient and fast.
The optical path system has the advantages of high efficiency, stability,convenient maintenance, etc. The entire optical path system is protected by clean positive air pressure to ensure that the optical lens and nozzle of the cutting head are free from contamination.

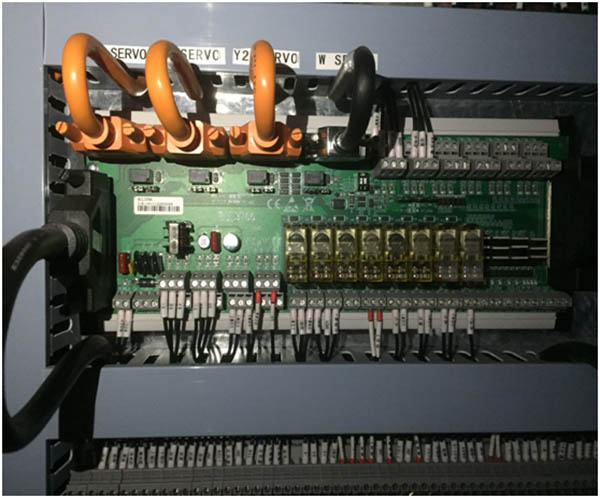

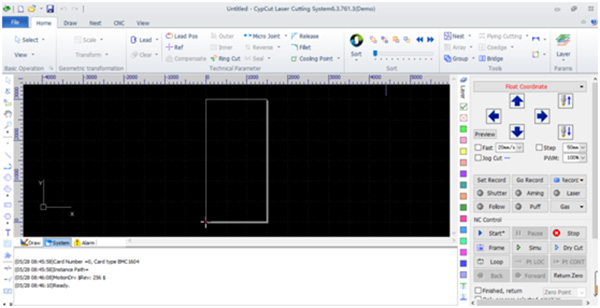

CNC Controller
With the professional automatic typesetting software, the cutting plate availability increase 1%-5%, cutting productivity 10%-30%, significantly improve the cut quality, process data management, data collection and statistics and other data management functions, visualization integrated interface, simple operation, easy to learn.

Self-adjusting system： Laser head collision avoidance system

Servo System

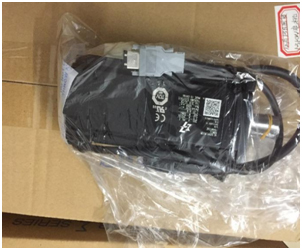

1. Yaskawa Servo drives and motors

Yaskawa servo drive and motor with the stable performance has been widely used in the laser cutting. MAQ laser had a profound experience of the servo drive and motor applications, to ensure the best stable of the electronic-mech drive with the inertia ratio and fast acceleration.

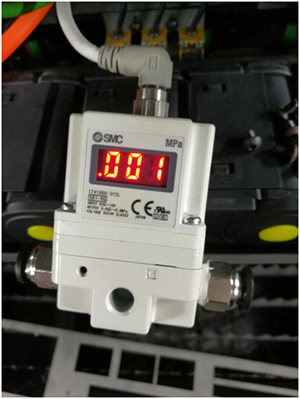

The Pneumatic Control Unit
Japanese SMC brand supply the qualified pneumatic components with its strong technical background. The product quality is reliable, a wide range of the customer service network. MAQ Laser selected the gas flow automatic control and pressure automatic alarm to ensure the cutting quality，easy operation and maintenance to save the customer's time.

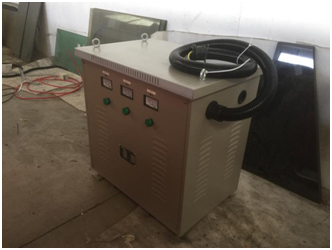

Voltage regulator (including transformer):

Provide stable equipment required voltage range to ensure the stability of the production power supply

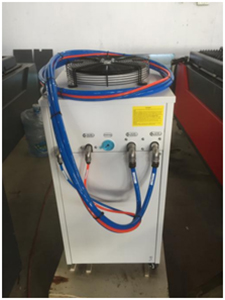

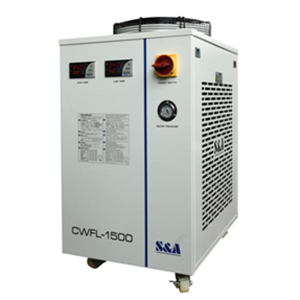

Cooling System:
The professional water chiller is controlled by the refrigerant control loop, high precision temperature controller is used to control and display water temperature, fully automatic operation and high temperature low noise; The inner water tank and pipe of the product are made of stainless steel, and the exterior gold plate is made of electrostatic spraying, which can effectively prevent rust. Use clean water or deionized water to improve the efficiency and life of devices such as lasers.

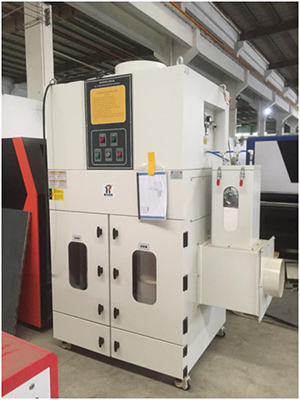

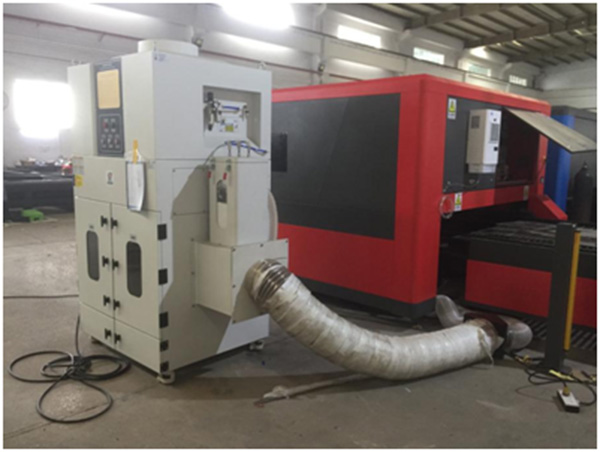

Industrial Dust Collector:

Cutting process will produce a lot of smoke and ash layer, the equipment will purify its closed processing space in the smoke and dust particles.

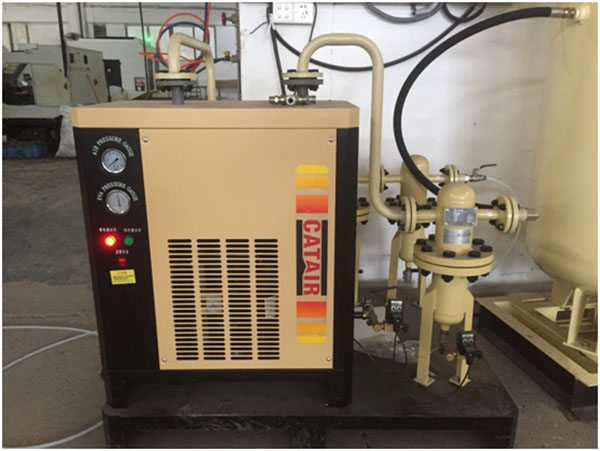

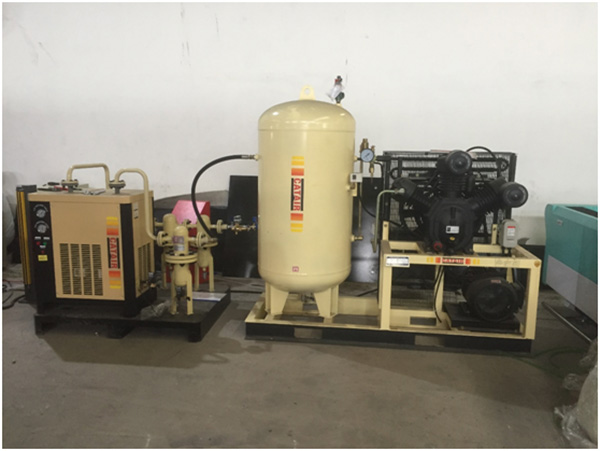

Air Compressor and Air Dryer:

Air compressor provides equipment for cutting high and low pressure gas, cold-dry machine will produce high-pressure gas cooling and dehumidification

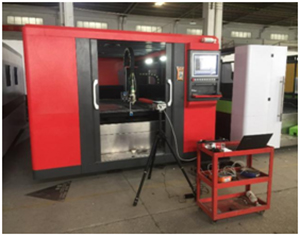

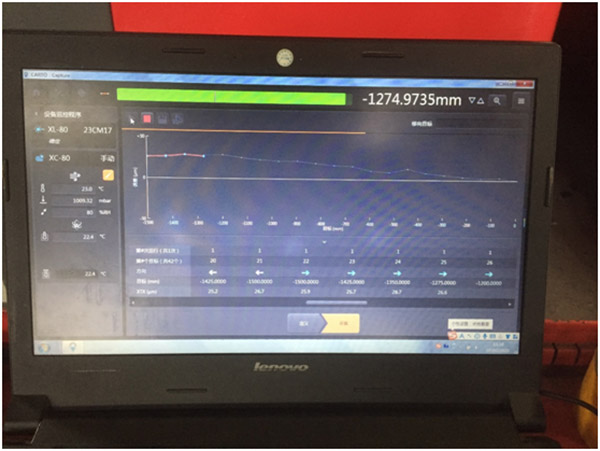

Double Pitch Compensation of laser nterferometer

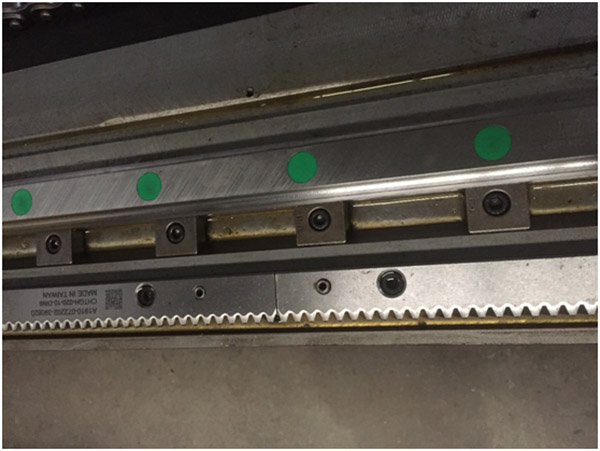

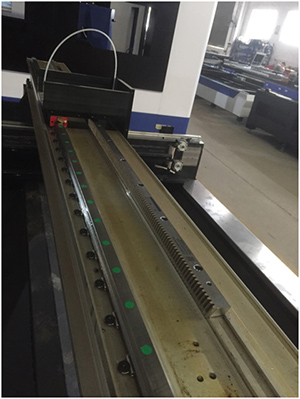

Linear Guide and Gantry Structure
MAQ laser cutting machine gantry structure under the dual drive, linear guide and rack pair inclined installation, the stress state is more reasonable, the movement is more stable

Aluminum Beam
The cast aluminum beam, MAQ laser cutting machine with light weight, good dynamic response, faster acceleration, better comprehensive cutting effect.

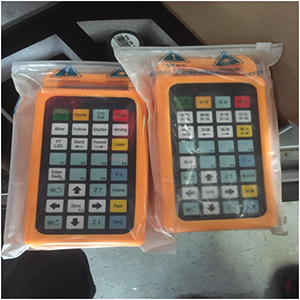

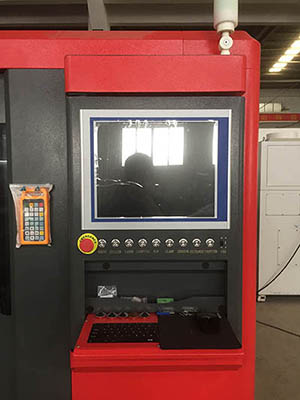

Control Box
Wireless remote control box, more convenient operation

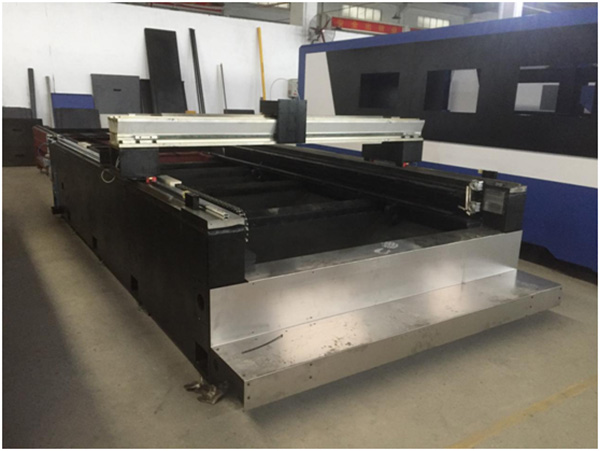

Machine Body Process
MAQ laser cutting machine body using steel box welding process, twice annealing and on the large gantry CNC lathe processing.

Style Design:
Europe style design, the machine sheetmetal streamlined without sharp edges, highly safet

Safety Protection grating protection

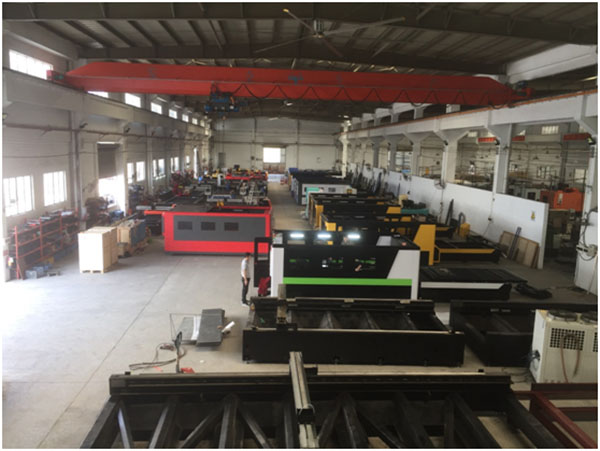

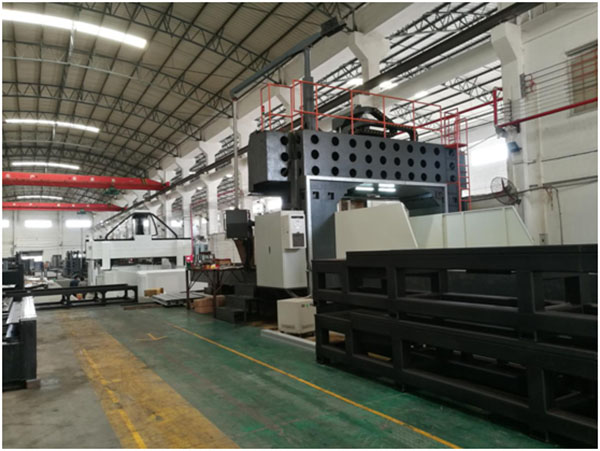

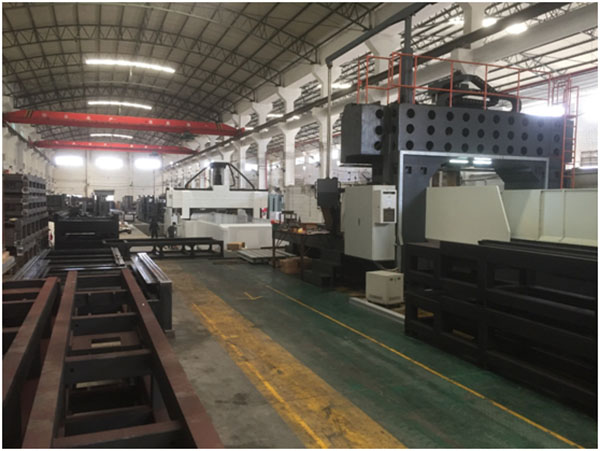

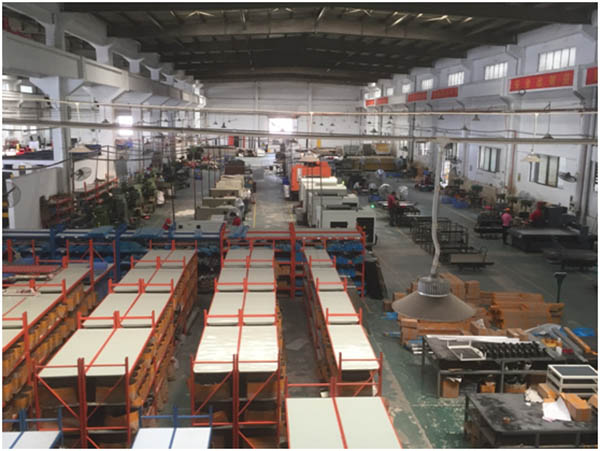

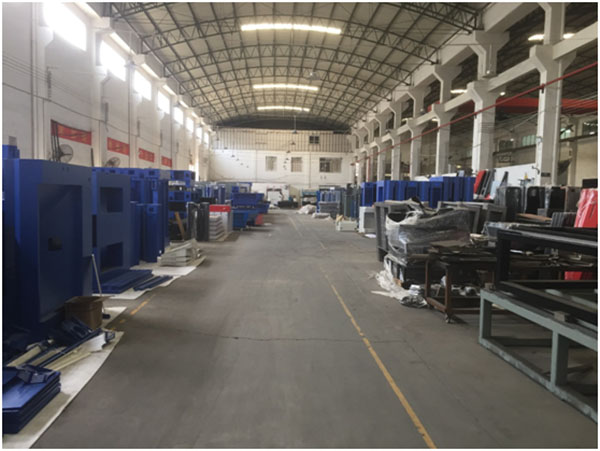

Factory shoot

Assembly shop

Small machine shop

Sheet metal shop

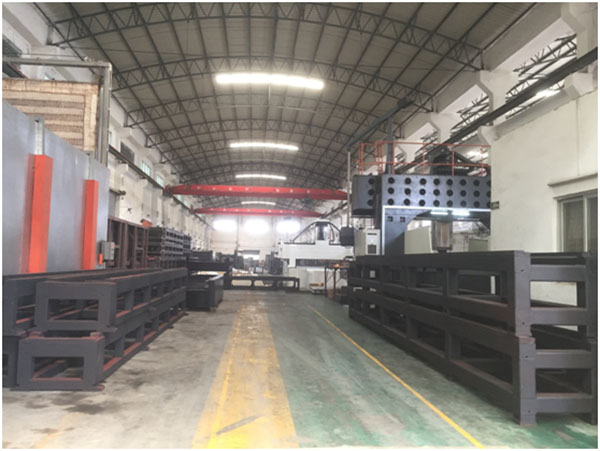

Large machine shop

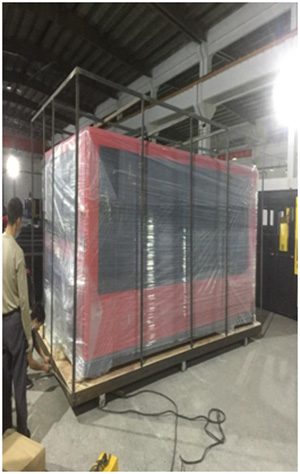

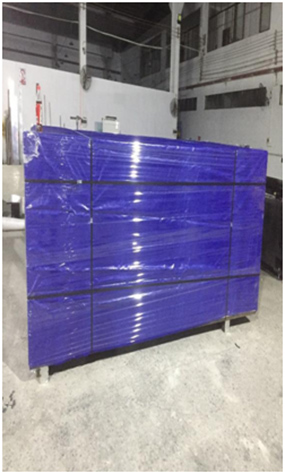

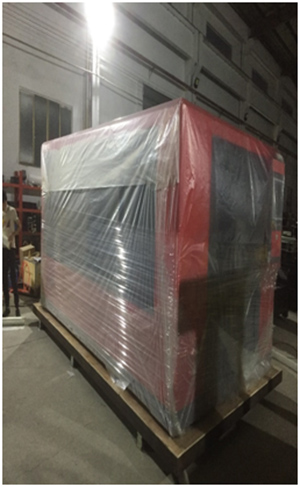

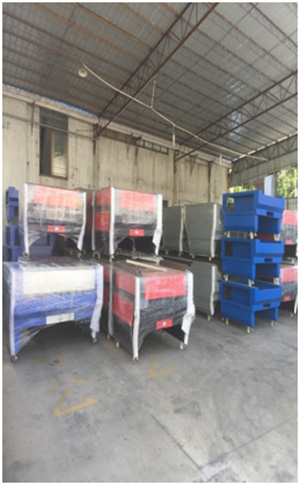

Packing area
