High-equipped Precise Automatic Hydraulic Plate Shear
| Place of Origin: | CHINA |
| Brand Name: | MAQ |
| Model Number: | QC12Y-4×2000 - QC12Y-32×3200 |
| Certification: | CE |
| Minimum Order Quantity: | >1 |
| Price: | To be negotiated |
| Packaging Details: | Plywood case |
| Delivery Time: | 90days |
| Payment Terms: | Online Transfer |
| Supply Ability: |
Inquiry
Description
1. Hydraulic transmission,

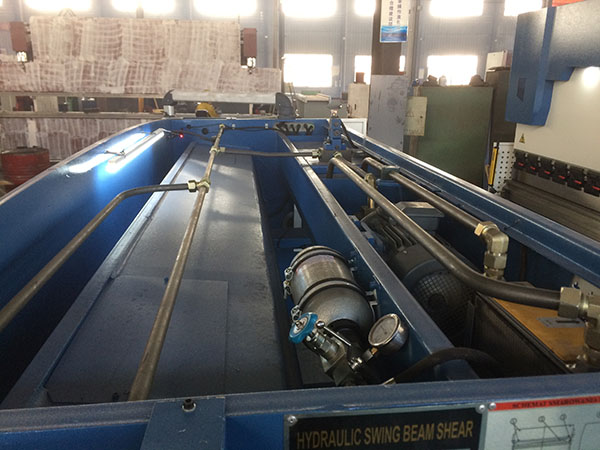

pendulum-type tool holder，and the use of a nitrogen cylinder returns
smoothly and rapidly. Welded steel structure and vibratory stress
relief, so the precision is well maintained.
2. Adopts three point rolling guide, disc spring to eliminate the gap between guides to improve the quality of cutting.
3. It

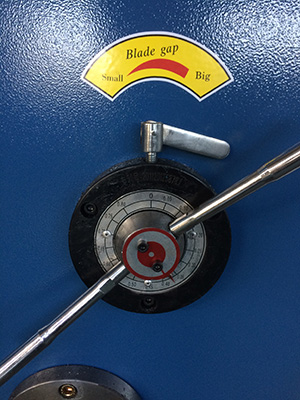

has the function of stepless adjustment stroke. The amount of upper and
lower blade edge clearance is adjusted by the handle, and the gap of
the blade is even and rapid.

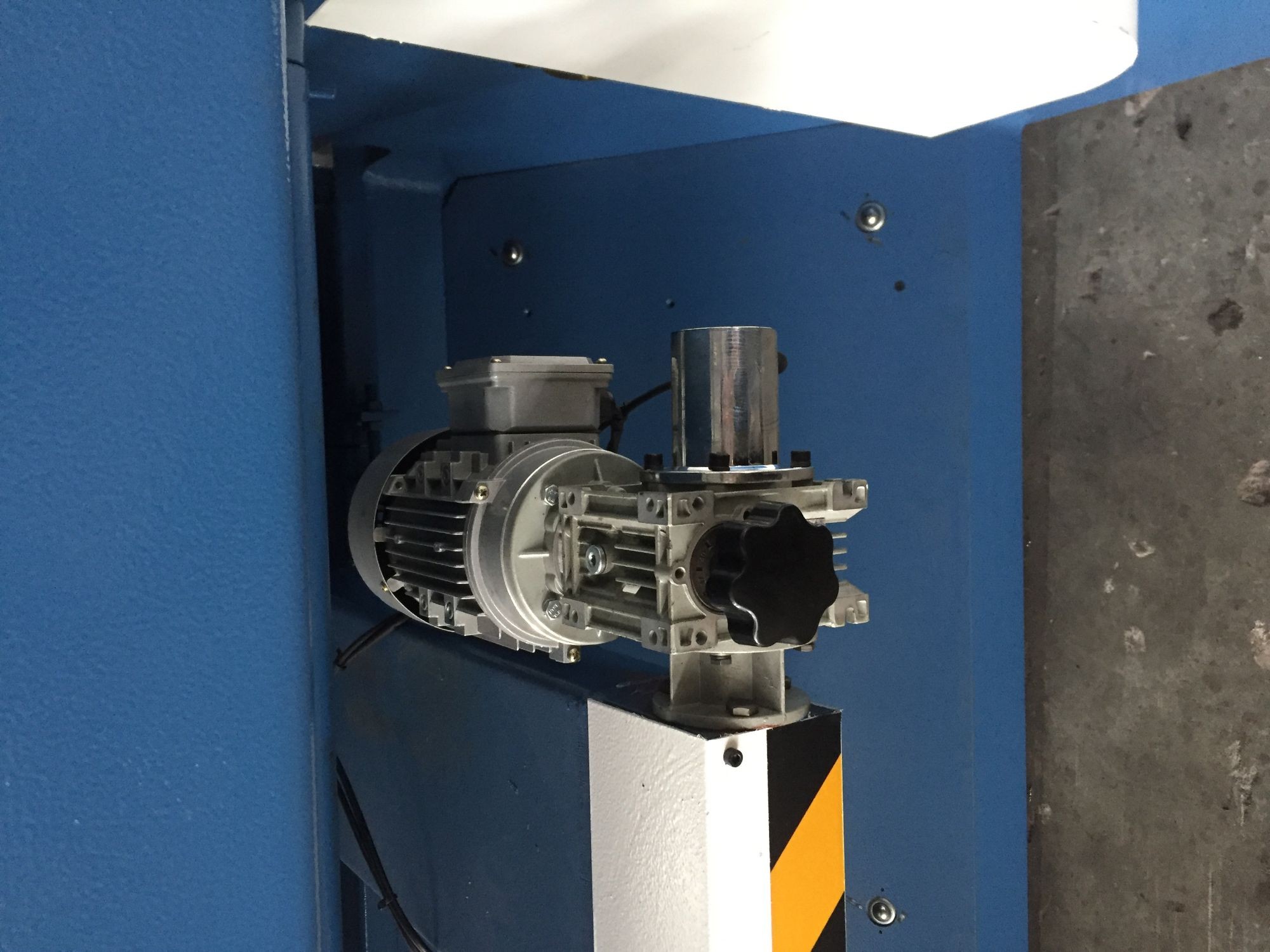

4. Electric adjustment for back gauge, and its adjustment is fast and easy.
5. Equipped with lighting device, easy for cutting.

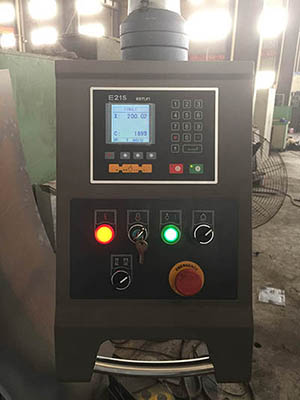

6. ESTUN E21S CNC controller.
7. Germany Rexroth integrated hydraulic valve Sunny pump.
8. Germany Siemens main motor.
9. Germany Schneider electrics.
10. Light align.
11. Swing beam shear, plate shear
12. Automatic control, high precise, easy to operate, quality After-sales Service
Product Parameters
| Model | Max.shear thickness(mm) | Max.shear width(mm) | Shear angle(°) | Number of stroke(min) | Back gauge range(mm) | Motor power(kw) | Net weight(kg) | Dimensions(mm) |
| QC12Y-4×2000 | 4 | 2000 | 1°30´ | 22 | 20-480 | 4 | 3200 | 2630×2030×1600 |
| QC12Y-4×2500 | 4 | 2500 | 1°30´ | 20 | 20-480 | 4 | 3800 | 3130×2030×1600 |
| QC12Y-4×3200 | 4 | 3200 | 1°30´ | 20 | 20-600 | 5.5 | 5600 | 3840×2175×1600 |
| QC12Y-4×4000 | 4 | 4000 | 1°30´ | 18 | 20-600 | 5.5 | 7000 | 4640×2320×1600 |
| QC12Y-6×2500 | 6 | 2500 | 1°30´ | 18 | 20-600 | 7.5 | 5200 | 3130×2320×1600 |
| QC12Y-6×3200 | 6 | 3200 | 1°30´ | 16 | 20-600 | 7.5 | 6500 | 3840×2320×1620 |
| QC12Y-6×4000 | 6 | 4000 | 1°30´ | 14 | 20-600 | 7.5 | 8500 | 4630×2495×1700 |
| QC12Y-6×6000 | 6 | 6000 | 1°30´ | 6 | 20-900 | 11 | 16800 | 6645×2530×2250 |
| QC12Y-8×2500 | 8 | 2500 | 1°30´ | 14 | 20-600 | 11 | 6200 | 3140×2345×1620 |
| QC12Y-8×3200 | 8 | 3200 | 1°30´ | 12 | 20-600 | 11 | 7300 | 3850×2345×1620 |
| QC12Y-8×4000 | 8 | 4000 | 1°30´ | 10 | 20-600 | 11 | 9600 | 4630×2495×1700 |
| QC12Y-8×6000 | 8 | 6000 | 1°30´ | 6 | 20-900 | 15 | 17600 | 6650×2845×1700 |
| QC12Y-12×2500 | 12 | 2500 | 1°30´ | 12 | 20-900 | 18.5 | 9600 | 3235×3050×2100 |
| QC12Y-12×3200 | 12 | 3200 | 1°30´ | 10 | 20-900 | 18.5 | 12000 | 3945×3050×2100 |
| QC12Y-12×4000 | 12 | 4000 | 1°30´ | 8 | 20-900 | 18.5 | 14500 | 4745×3210×2200 |
| QC12Y-12×6000 | 12 | 6000 | 1°30´ | 5 | 20-900 | 22 | 29500 | 6745×3430×2300 |
| QC12Y-16×2500 | 16 | 2500 | 2° | 12 | 20-900 | 22 | 11600 | 3410×3230×2230 |
| QC12Y-16×3200 | 16 | 3200 | 2° | 10 | 20-900 | 22 | 14000 | 4120×3230×2230 |
| QC12Y-16×4000 | 16 | 4000 | 2° | 8 | 20-900 | 22 | 18000 | 4920×3330×2700 |
| QC12Y-16×6000 | 16 | 6000 | 2° | 6 | 20-900 | 37 | 43000 | 7100×3530×2700 |
| QC12Y-20×2500 | 20 | 2500 | 2°30´ | 10 | 20-900 | 37 | 17500 | 3420×3330×2700 |
| QC12Y-20×3200 | 20 | 3200 | 2°30´ | 8 | 20-900 | 37 | 25500 | 4180×3330×2700 |
| QC12Y-20×4000 | 20 | 4000 | 2°30´ | 6 | 20-900 | 37 | 29000 | 4980×3480×2830 |
| QC12Y-20×6000 | 20 | 6000 | 2°30´ | 4 | 20-900 | 75 | 56500 | 7180×3580×2830 |
| QC12Y-25×2500 | 25 | 2500 | 2°30´ | 8 | 20-900 | 45 | 24000 | 3480×3430×2700 |
| QC12Y-25×3200 | 25 | 3200 | 2°30´ | 7 | 20-900 | 45 | 32000 | 4180×3430×2700 |
| QC12Y-25×4000 | 25 | 4000 | 2°30´ | 6 | 20-900 | 45 | 39500 | 4980×3580×2800 |
| QC12Y-32×2500 | 32 | 2500 | 3° | 6 | 20-900 | 55 | 33000 | 3760×4405×3150 |
| QC12Y-32×3200 | 32 | 3200 | 3° | 6 | 20-900 | 55 | 40500 | 4590×4405×3150 |
