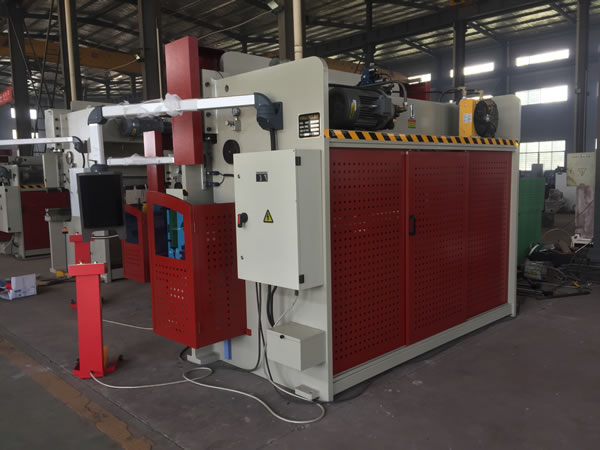

cnc hydraulic press brake machine
| Model Number: | WC67K-30/1320 - WC67K-400/4000 |
| Certification: | CE |
| Packaging Details: | Plywood case |
| Delivery Time: | 90days |
| Payment Terms: | Online Transfer |
Inquiry
Description
1.Equipped with Delem(can also be equipped with MA41),or Estun company dedicated CNC systems.
2.The servo motors are imported, the slider stroke (Y), the back gauge (X, R, Z)and main pressure all controlled by the computer.
3.The back gauge adopts ball screw and linear guide, the repeat positioning accuracy is high.
Product Parameters
| Nominal force | Length of workbench | Distance between vertical columns | Throat depth | Stroke | Max.open height | Adjustment of stroke | Motor power | Net weight | Dimensions | |
|---|---|---|---|---|---|---|---|---|---|---|
| WC67K-30/1320 | 300 | 1320 | 1140 | 200 | 80 | 320 | 60 | 3 | 2000 | 1940×1510×1905 |
| WC67K-30/1600 | 300 | 1600 | 1420 | 200 | 80 | 320 | 60 | 3 | 2300 | 2220×1510×1905 |
| WC67K-40/1320 | 400 | 1320 | 1120 | 200 | 100 | 340 | 80 | 4 | 2200 | 1950×1600×2070 |
| WC67K-40/1600 | 400 | 1600 | 1400 | 200 | 100 | 340 | 80 | 4 | 3100 | 2230×1600×2070 |
| WC67K-40/2000 | 400 | 2000 | 1800 | 200 | 100 | 340 | 80 | 4 | 3300 | 2555×1600×2070 |
| WC67K-40/2500 | 400 | 2500 | 2300 | 200 | 100 | 340 | 80 | 4 | 3600 | 3055×1600×2070 |
| WC67K-63/2500 | 630 | 2500 | 2260 | 250 | 100 | 355 | 80 | 5.5 | 4800 | 3100×1725×2355 |
| WC67K-63/3200 | 630 | 3200 | 2960 | 250 | 100 | 355 | 80 | 5.5 | 5600 | 3800×1725×2355 |
| WC67K-80/2500 | 800 | 2500 | 2240 | 250 | 100 | 355 | 80 | 7.5 | 5900 | 3100×1725×2240 |
| WC67K-80/3200 | 800 | 3200 | 2940 | 250 | 100 | 355 | 80 | 7.5 | 6600 | 3800×1725×2240 |
| WC67K-80/4000 | 800 | 4000 | 3740 | 250 | 100 | 355 | 80 | 7.5 | 7800 | 4600×1765×2400 |
| WC67K-100/2500 | 1000 | 2500 | 2210 | 320 | 120 | 415 | 100 | 7.5 | 7300 | 3150×1850×2530 |
| WC67K-100/3200 | 1000 | 3200 | 2910 | 320 | 120 | 415 | 100 | 7.5 | 8100 | 3850×1850×2690 |
| WC67K-100/4000 | 1000 | 4000 | 3710 | 320 | 120 | 415 | 100 | 7.5 | 9200 | 4750×1850×2800 |
| WC67K-125/2500 | 1250 | 2500 | 2210 | 320 | 120 | 415 | 100 | 7.5 | 7800 | 3150×1850×2530 |
| WC67K-125/3200 | 1250 | 3200 | 2910 | 320 | 120 | 415 | 100 | 7.5 | 8150 | 3850×1850×2690 |
| WC67K-125/4000 | 1250 | 4000 | 3710 | 320 | 120 | 415 | 100 | 7.5 | 9800 | 4750×1850×2800 |
| WC67K-160/3200 | 1600 | 3200 | 2830 | 320 | 200 | 455 | 160 | 11 | 12000 | 3900×1940×2630 |
| WC67K-160/4000 | 1600 | 4000 | 3630 | 320 | 200 | 455 | 160 | 11 | 14000 | 4700×1940×2800 |
| WC67K-160/6000 | 1600 | 6000 | 5630 | 320 | 200 | 455 | 160 | 11 | 19500 | 6700×2340×3100 |
| WC67K-200/3200 | 2000 | 3200 | 2880 | 320 | 200 | 455 | 160 | 15 | 14500 | 3900×2000×2970 |
| WC67K-200/4000 | 2000 | 4000 | 3680 | 320 | 200 | 455 | 160 | 15 | 15400 | 4900×2000×2990 |
| WC67K-200/6000 | 2000 | 6000 | 5680 | 320 | 200 | 455 | 160 | 15 | 24600 | 6900×2100×3700 |
| WC67K-250/3200 | 2500 | 3200 | 2850 | 400 | 250 | 560 | 200 | 18.5 | 16000 | 3950×2200×3100 |
Applications
Iron, aluminum, steel, plate bending angle processing
